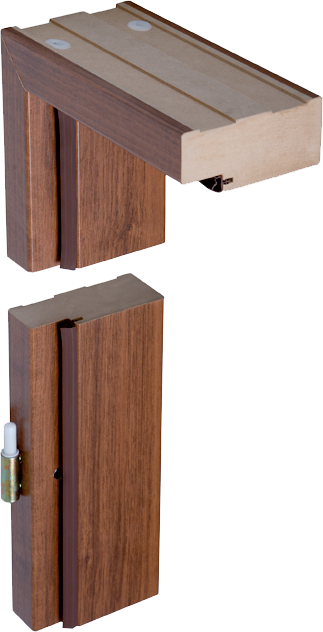

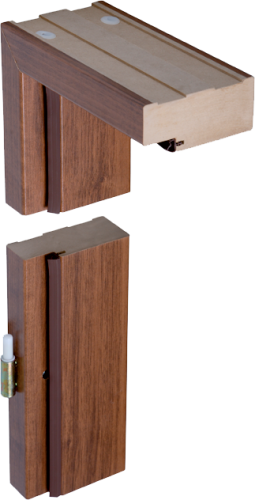

MDF block frame Z-Type (100 x 43 mm) VENEERED

Available options:

PREMIUM

EXTREME

CPL

Description:

Block door frame Z-type is offered to almost all door leaves being currently in our range. It is a base to most door models. Made out of timber (Z/DF, Z/DW. Z/DP) or MDF (Z/MF). It is also offered laminated with CPL (Z/MC). The range of available decors is very wide and counts over 30 from classes BASIC, BASIC PLUS, PREMIUM, PREMIUM LUX and EXTREME.
DIMENSIONS OF A BLOCK DOOR FRAME FOR SINGLE LEAF DOOR
DIMENSIONS DOOR FRAMES' DIMENSIONS (in mm)
  60 70 80 90 100 110
So 602 702 802 902 1002 1102
Sw 625 725 825 925 1025 1125
Sz 688 788 888 988 1088 1188
Sm 710 810 910 1010 1110 1210
Ho 2017
Hw 2029
Hz 2060
Hm 2075
DIMENSIONS OF THE TYPE Z BLOCK FRAMES FOR STANDARD DOUBLE DOORS
SIZE DOUBLE DOOR LEAVES' SIZES STANDARD SIZES
Sw So Sz Sm Ho Hw Hz Hm
120 60+60 1272 1248 1334 1355 2017 2029 2060 2075
130 70+60 1372 1348 1434 1455
140 80+60 1472 1448 1534 1555
150 90+60 1572 1548 1634 1655
140 70+70 1472 1448 1534 1555
150 80+70 1572 1548 1634 1655
160 90+70 1672 1648 1734 1755
160 80+80 1672 1648 1734 1755
170 90+80 1772 1748 1834 1855
180 90+90 1872 1848 1934 1955
Z-type frame for models BOSTON, MANHATTAN, ETNA*, YORK, VESTO, BRISTOL, DENVER*, VIGO*, RENO*, MONTANA*, VILA*, MODESTO*, OSLO*, BOSTON ST+*, DAKAR*, MONACO*
  price net price incl VAT
For decors: WHITE, BUK, CALVADOS, OAK, MAHOGANY, ERLE, MAPLE, ORAH (OI) (model MF/Z) 103,00 126,69
For decors: CHESTNUT, OFRAM, VENGE, CAFE, CARAMEL, ACACCIA, COGNAC, GINGER, NUT, VOG (model MF/Z) 122,00 150,06
For CPL laminates: BEECH, DUB, ASH, MOCCA, NOCE (model MC/Z) 161,00 198,03

So - width of the frame opening
Sw - width of the frame opening including rebate
Sz - outer width of the frame
Sc - total outer width of the frame
Sp - total width including covering profile
Sm - recommended width of the wall opening
Ho - height of the frame opening
Hw - height of the frame opening including rebate
Hz - outer height of the frame
Hp - total height of the frame including covering profile
Hm - recommended height of the wall opening
