DIMENSIONS OF THE SW ADJUSTABLE FRAMES FOR SINGLE LEAF DOORS
DIMENSIONS SIZE OF THE FRAME
60 70 80 90 100 110
So 603 703 803 903 1003 1103
Sw 625 725 825 925 1025 1125
Sz 647 747 847 947 1047 1147
Sc 664 764 864 964 1064 1164
Sp 745 845 945 1045 1145 1245
Sm 684 784 884 984 1084 1184
Ho 2018
Hw 2029
Hz 2040
Hp 2089
Hm 2060

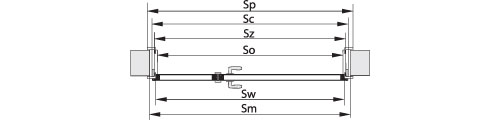

DIMENSIONS OF THE SW ADJUSTABLE FRAMES FOR OSAKA (OS) DOUBLE DOOR WITH 40' SIDELIGHT
SIZE DOUBLE DOOR LEAVES' SIZES STANDARD SIZES
So Sw Sz Sc Sp Sm Hw Ho Hz Hp Hm
100 60+40 1037 1059 1081 1115 1179 1135 2029 2018 2040 2089 2060
110 70+40 1137 1159 1181 1215 1279 1235
120 80+40 1237 1259 1281 1315 1379 1335
130 90+40 1337 1359 1381 1415 1479 1435

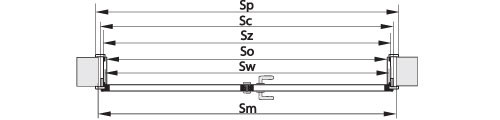

DIMENSIONS OF THE SW ADJUSTABLE FRAMES FOR STANDARD DOUBLE DOORS
SIZE DOUBLE DOOR LEAVES' SIZES STANDARD DIMENSIONS
Sw So Sz Sc Sp Sm Hw Ho Hz Hp Hm
120 60+60 1272 1250 1294 1328 1392 1350 2029 2018 2040 2089 2060
130 70+60 1372 1350 1394 1428 1492 1450
140 80+60 1472 1450 1494 1528 1592 1550
150 90+60 1572 1550 1594 1628 1692 1650
140 70+70 1472 1450 1494 1528 1592 1550
150 80+70 1572 1550 1594 1628 1692 1650
160 90+70 1672 1650 1694 1728 1792 1750
160 80+80 1672 1650 1694 1728 1792 1750
170 90+80 1772 1750 1794 1828 1892 1850
180 90+90 1872 1850 1894 1928 1992 1950
Adjustable veneered segmented frame for models: BOSTON, MANHATTAN, EDO, OSAKA, KOBE, ETNA, YORK, OSAKA MIRAGE, SAPPORO, NAGANO, VESTO, BRISTOL, MONTANA, DENVER, MODESTO, VIGO, RENO, VILA, OSLO, DAKAR, MONACO*
size symbol wall thickness mm assemblage of the panels price of the frame
Decors:WHITE, BUK, OAK, ERLE, CALVADOS, MAHOGANY, MAPLE, ORAH (OI) Decors: WALNUT (OJ), GOLD, CHERRY, MILKY, PLAZA, ROAN, COGNAC, GINGER, NUT, VOG, CHESTNUT, OFRAM, VENGE; ACACCIA. For CPL decors: BEECH, DUB, ASH, NOCE, MOCCA Decors: DARK, CAFE, CARAMEL Decor: EBONY
net price price inc VAT net price price inc VAT net price price inc VAT net price price inc VAT
A 75-95   179,00 220,17 233,00 286,59 248,00 305,04 275,00 338,25
B 95-115   186,00 228,78 242,00 297,66 257,00 316,11 284,00 349,32
C 120-140   193,00 237,39 251,00 308,73 266,00 327,18 293,00 360,39
D 140-160   200,00 246,00 260,00 319,80 275,00 338,25 302,00 371,46
E 160-180   207,00 254,61 269,00 330,87 284,00 349,32 311,00 382,53
F 180-200   214,00 263,22 278,00 341,94 293,00 360,39 320,00 393,60
G 200-220   221,00 271,83 287,00 353,01 302,00 371,46 329,00 404,67
H 220-240   228,00 280,44 296,00 364,08 311,00 382,53 338,00 415,74
I 240-260 140+100 264,00 324,72 306,00 376,38 321,00 394,83 348,00 428,04
J 260-280 140+120 272,00 334,56 315,00 387,45 330,00 405,90 357,00 439,11
K 280-300 140+140 280,00 344,40 324,00 398,52 339,00 416,97 366,00 450,18
1 300-320 140+160 288,00 354,24 363,00 446,49 378,00 464,94 405,00 498,15
2 320-340 140+180 296,00 364,08 372,00 457,56 387,00 476,01 414,00 509,22
3 340-360 140+200 304,00 373,92 381,00 468,63 396,00 487,08 423,00 520,29
4 360-380 140+220 312,00 383,76 390,00 479,70 405,00 498,15 432,00 531,36
5 380-400 220+160 320,00 393,60 399,00 490,77 414,00 509,22 441,00 542,43

So - width of the frame opening
Sw - width of the frame opening including rebate
Sz - outer width of the frame
Sc - total outer width of the frame
Sp - total width including covering profile
Sm - recommended width of the wall opening
Ho - height of the frame opening
Hw - height of the frame opening including rebate
Hz - outer height of the frame
Hp - total height of the frame including covering profile
Hm - recommended height of the wall opening
ATTENTION! Frame for decor WHITE, BUK, CALVADOS, OAK, ERLE, MAHOGANY, ORAH, MAPLE is equipped with two hinges for sizes 60, 70, 80 and three hinges for size 90. All other decors feature three hinges in all sizes.

RANGE OF ADJUSTMENT FOR ADJUSTABLE FRAMES SW-type  przekrój oscieznicy segmentowej regulowanejj
ADJUSTMENT RANGE SYMBOL OF THE FRAME ADJUSTMENT RANGE (G-DIMENSION -WALL THICKNESS in mm)
A 75-95
B 95-115
C 120-140
D 140-160
E 160-180
F 180-200
G 200-220
H 220-240
I 240-260
J 260-280
K 280-300
1 300-320
2 320-340
3 340-360
4 360-380
5 380-400
